YANMAR 777552-02561 Cover Asy,Rear

Write a Review
$2,167.57
SKU:
777552-02561
Schematic Object Key:
1-2

YANMAR 777552-02561 Cover Asy,Rear

$2,167.57

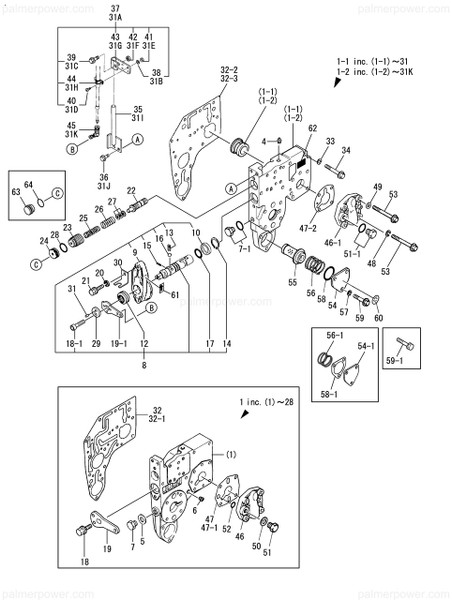

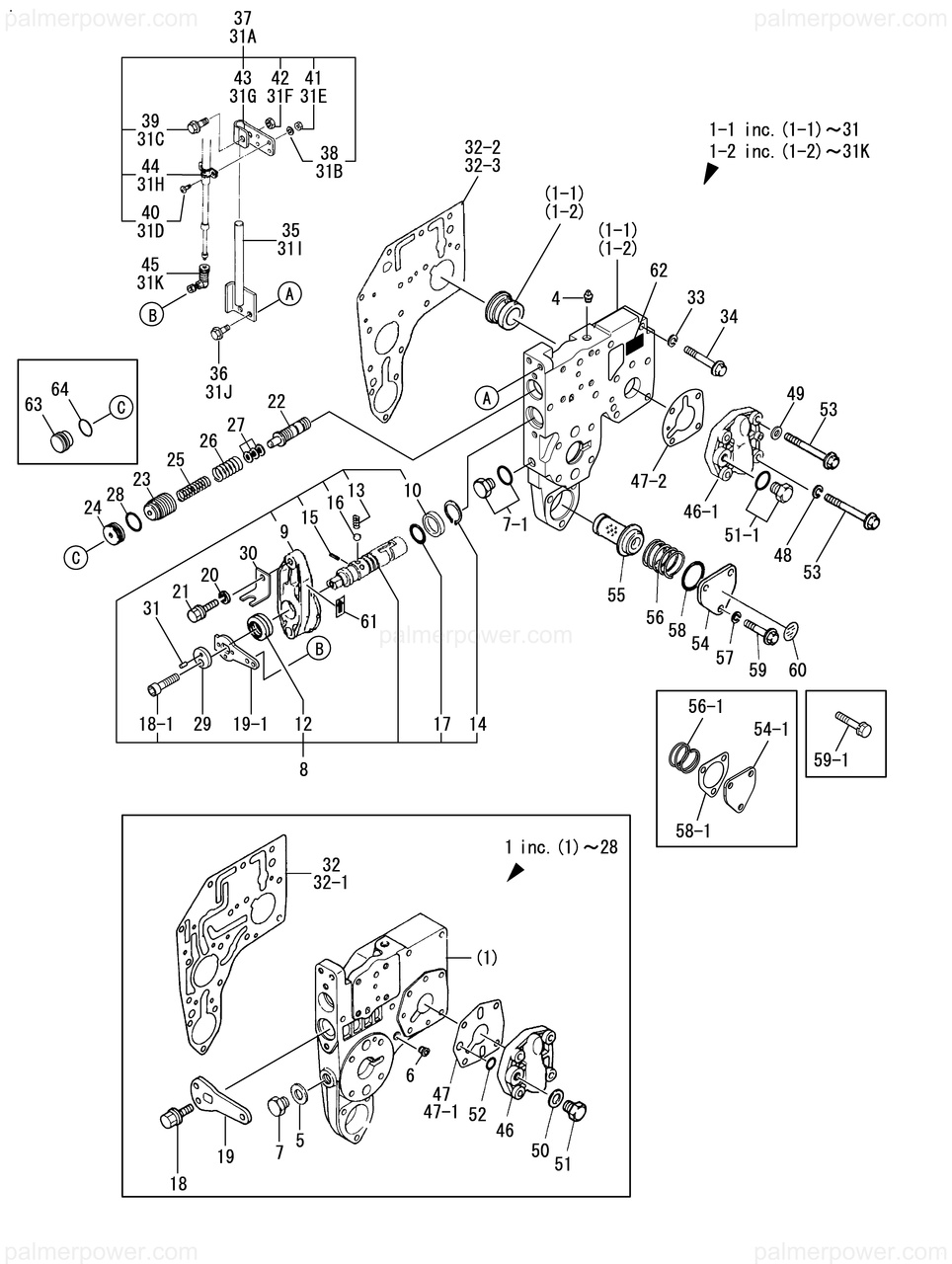

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 777552-02561 Cover Asy,Rear

Schematic Object Key : 1-2

Product Description : COVER ASY,REAR

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1-1 COVER ASSY 777056-02561
1-2 COVER ASY,REAR 777552-02561
4 PLUG, R1/8 23171-010000
4-1 PLUG, PF02 194151-36670
7-1 PLUG, 12 23490-120002
8 VALVE ASSY, SWITCH 777058-02530
9 COVER 177058-04090
10 SPACER 177040-04110
12 RING 177058-04160
13 SPRING 177040-04400
13-1 SPRING 178076-26130
14 RING, 22 22242-000220
15 PIN, SPRING 4.0X20 22351-040020
16 BALL, STEEL 5/16 24190-100001
17 O-RING, 1AP18.0 24311-000180
18-1 BOLT, M10X 20 26450-100202
19-1 LEVER 177061-04111
20 WASHER, 8 22287-080000
21 BOLT, M8X 30 PLATED 26106-080302
22-1 VALVE 177061-04201
23-2 VALVE 177061-04221
24 COVER 177040-04230
24-1 COVER 177061-04240
25-1 SPRING, VALVE 177561-04250
26-1 SPRING, VALVE 177052-04261
27-1 SHIM SET 177561-04220
28 O-RING, 1AP22.0 24311-000220
29 SPACER 177561-04120
29-1 SPACER 177561-04121
30 SUPPORT, SWITCH 177561-04140
31 PIN, SPRING 5.0X10 22351-050010
31A BRACKET ASSY, CABLE 177061-04490
31B SPRING WASHER 22212-050000
31C BOLT, M8X 20 PLATED 26116-080202
31D SCREW, M5X16 26557-050162
31E NUT, M5 26716-050002
31F NUT, M8 26716-080002
31G BRACKET 41701-001720
31H CLAMP 41710-000410
31I BRACKET, WIRE 177040-04750
31J BOLT, M8X 20 PLATED 26106-080202
31K JOINT, BALL 41710-001300
32-2 GASKET, PLATE 177558-02070
32-3 GASKET, CASE PLATE 177558-02071
34 BOLT, M8X 50 PLATED 26106-080502
35 BRACKET, WIRE 177040-04750
36 BOLT, M8X 20 PLATED 26106-080202
37 BRACKET ASSY, CABLE 177061-04490
37-1 BRACKET ASSY, CABLE 177061-04490
38 SPRING WASHER 22212-050000
38-1 SPRING WASHER 22212-050000
39 BOLT, M8X 20 PLATED 26116-080202
39-1 BOLT, M8X 20 PLATED 26116-080202
40 SCREW 26551-050122
40-1 SCREW, M5X16 26557-050162
40-2 SCREW, M5X16 26557-050162
41 NUT, M5 26716-050002
41-1 NUT, M5 26716-050002
42 NUT, M8 26716-080002
42-1 NUT, M8 26716-080002
43 BRACKET 41701-001720
43-1 BRACKET 41701-001720
44 CLAMP 41701-002390
44-1 CLAMP 41710-000410
44-2 CLAMP 41710-000410
45 JOINT, BALL 41710-001300
45-1 JOINT, BALL 41710-001300
46-1 COVER 177558-02100
47-2 PACKING 177558-02110
49 GASKET, 8X1.0 23414-080000
49-1 WASHER, SEAL 8 22190-080000
51-1 PLUG, 12 23490-120002
53 BOLT, M8X 75 PLATED 26106-080752
54 COVER, STRAINER 177040-02320
54-1 COVER, STRAINER 177524-04041
55 STRAINER 177040-02800
55-1 STRAINER 1683V0-01060
56 SPRING, STRAINER 1E6440-55230
56-1 SPRING, STRAINER 177524-04090
57 WASHER, 8 22287-080000
57-1 WASHER, 8 22287-080000
58 O-RING, 1AG35.0 24321-000350
58-1 GASKET, COVER 177524-04082
58-2 PACKING,COVER 177524-04083
59 BOLT, M8X 40 PLATED 26106-080402
59-1 BOLT, M8X 40 26016-080402
60-1 LABEL, STRAINER 177050-02821
61-1 LABEL 177055-02951
62-2 LABEL,EMERGENCY BOLT 177061-02811
63 COVER 177061-04230
64 O-RING, 1AP22.0 24311-000220
