YANMAR X1544026400 Spring

Write a Review
$37.72
SKU:
X1544026400
Schematic Object Key:
93

YANMAR X1544026400 Spring

$37.72

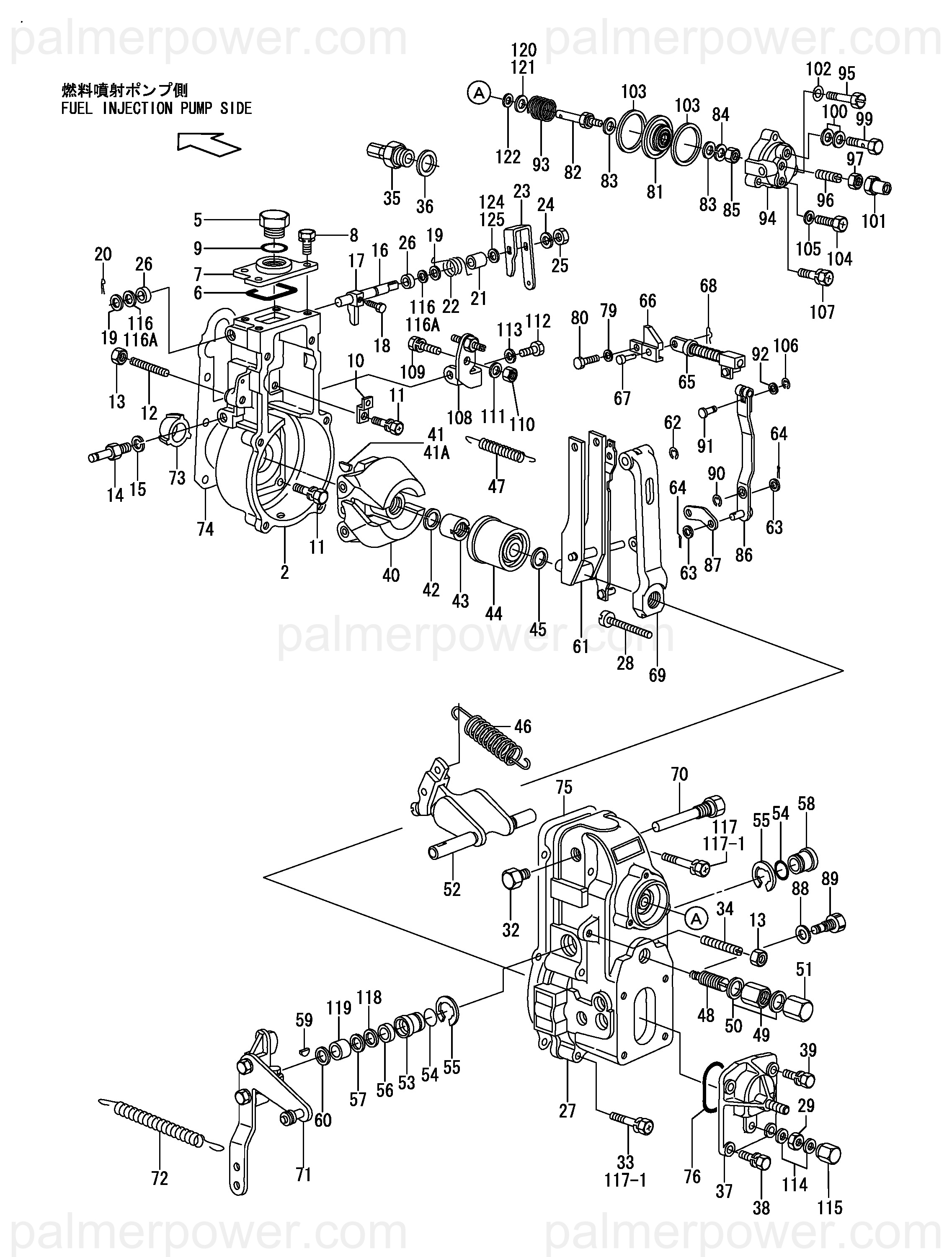

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR X1544026400 Spring

Schematic Object Key : 93

Product Description : SPRING

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
2 HOUSING X1540045321
5 PLUG X1540072900
6 RING, SEAL X1543582500
7 COVER X1540637900
7-1 COVER X1540644500
8 BOLT X0200061640
9 O-RING X0296325070
10 PLATE X1543506000
11 BOLT X1390064100
12 SCREW X1540100500
13 NUT X1540110100
14 BOLT X1540121720
15 WASHER, SPRING X0141108440
16 SHAFT X1550043600
17 LEVER X1550032101
18 BOLT X1550060100
18-1 BOLT X1550060700
19 WASHER X1393080900
20 SPLIT PIN X0255201210
21 COLLAR X1542062000
21-1 COLLAR X1542066300
22 SPRING X1543274200
23 LEVER X1543805600
24 WASHER, SPRING X0141108440
25 NUT X0130208040
26 OIL SEAL X0296208050
27 COVER X1540226020
28 SCREW X1540314800
29 NUT X1392080400
32 PLUG X1540360300
33 BOLT X1390067100
34 SCREW X1540100100
35 LIMITER X1530216720
36 GASKET X0265243040
37 COVER X1540641320
38 BOLT X0290206210
39 BOLT X0200061640
40 FLYWAIGHT ASSY. X1541010020
41 WOODRUFF KEY X0258031310
41A WOODRUFF KEY X0258031610
42 SPRING WASHER X0293212020
43 NUT X0292312030
44 SLEEVE X1541232320
45 SHIM X0299981000
46 SPRING X1541500400
47 SPRING X1541540500
48 CAPSULE, SPRING X1541580820
49 NUT X0292012290
50 GASKET X0265121540
51 NUT, CAP X1541591200
52 LEVER, SWIVEL X1542007020
53 BUSH X1542043000
53-1 BUSH X1542044300
54 O-RING X0296318020
55 RING, SNAP X0160101640
56 SEAL, OIL X1396110000
57 SHIM X1394110000
58 BUSH X1542043100
58-1 BUSH X1542044400
59 WOODRUFF KEY X0258031310
60 COLLAR X1542062800
61 LEVER ASSY, GUIDE X1542172920
62 RING, SNAP X0160100540
63 SHIM X0293105170
64 SPLIT PIN X0255201210
65 LINK X1542346920
65-1 LINK X1542355020
66 CONNECTOR X1542322420
67 PIN X1592314900
68 PIN X1554023800
69 LEVER, TENSION X1542364100
70 PIN X1542371100
71 LEVER X1543455320
72 SPRING X1543142600
73 IMPELLER X1554125200
74 GASKET X1543508700
74-1 GASKET X1543715600
75 GASKET X1543507800
75-1 GASKET X1543900300
76 O-RING X0296352020
79 WASHER, SPRING X0293205020
80 SCREW X0105351040
81 DIAPHRAGM X1544007420
82 ROD, PUSH X1544004800
83 GASKET X0293308050
84 SPRING WASHER X1393080700
85 NUT X0130306040
86 LEVER X1544013620
87 LINK X1544011320
88 GASKET X0265101440
89 BOLT X1544012100
90 RING, SNAP X0160100540
91 PIN X1542226200
92 WASHER X0293004010
93 SPRING X1544026400
93-1 SPRING X1544029500
94 COVER X1544043900
95 BOLT X0201062540
96 SCREW X1540341900
97 NUT X0230406040
99 EYE BOLT X0297310180
100 GASKET X0265101340
101 CAP NUT X1540350320
102 WASHER, SPRING X0141106440
103 GASKET X1543520700
103-1 GASKET X1544132600
104 PLUG X0290106010
105 GASKET X0265061040
106 SNAP RING X0160100440
107 BOLT X0290106310
108 BRACKET X1543589420
109 BOLT X0201181640
110 NUT X1540111100
111 SHIM X0293008320
112 SCREW X1540106100
113 WASHER, SPRING X0141108440
114 GASKET X0265081140
115 NUT, CAP X1540352000
116 WASHER X1393081000
116A SHIM T0.5 D16/ 8 X1394081500
117 BOLT X0201065040
117-1 BOLT X0201065040
118 SHIM X0293111090
118-1 SHIM X0293111070
119 WASHER X1542060200
120 SHIM T0.5 D25.5/20.0 X0293120180
121 SHIM T0.2 D25.5/20.0 X0293120210
122 SHIM X0293109080
124 SHIM T0.2 D16/ 8 X1394081400
125 SHIM T0.5 D16/ 8 X1394081500
