YANMAR X223316 Fuse 10A

Write a Review
$23.93
SKU:
X223316
Schematic Object Key:
27A

YANMAR X223316 Fuse 10A

$23.93

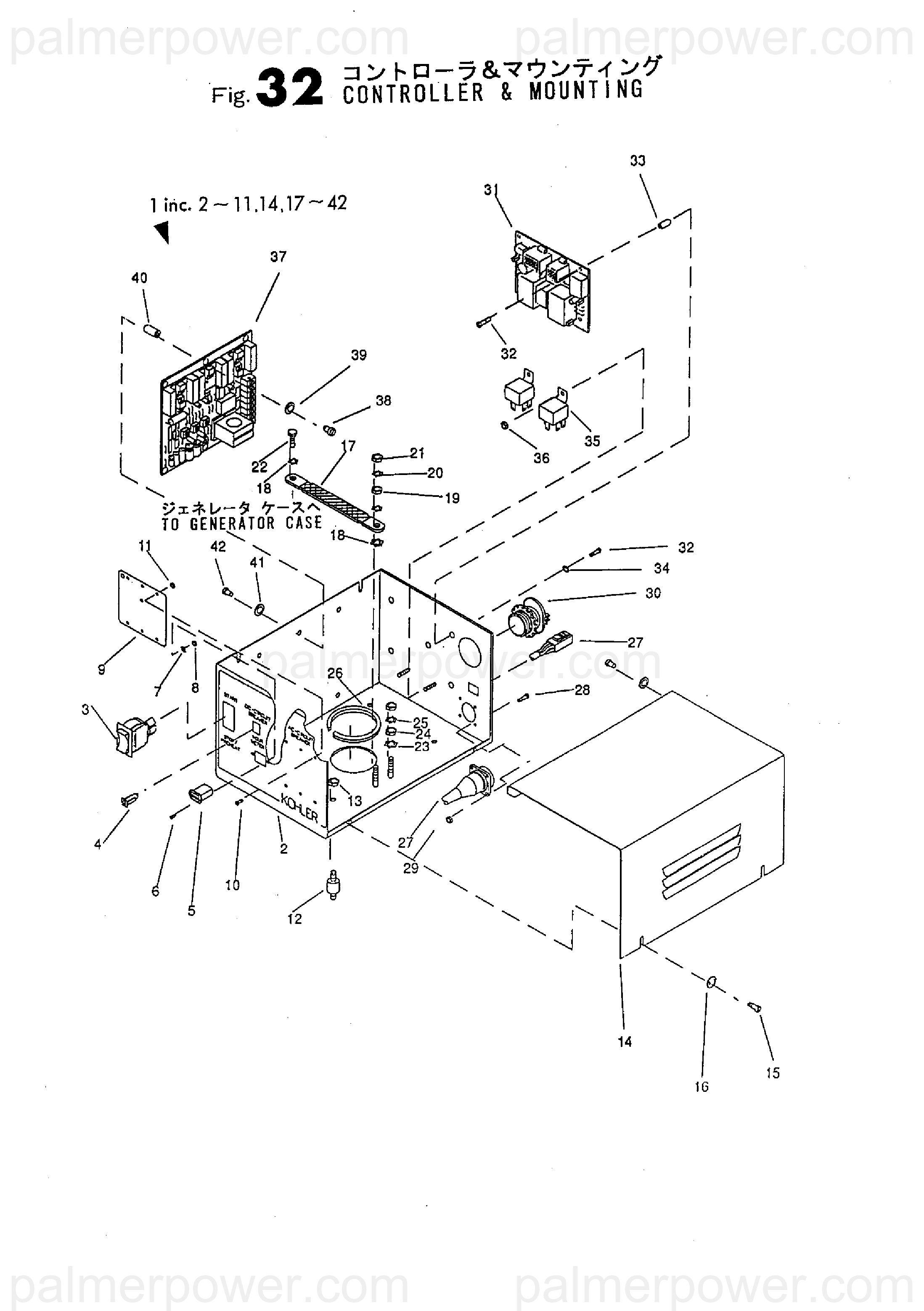

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR X223316 Fuse 10A

Schematic Object Key : 27A

Product Description : FUSE 10A

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 CONTROLLER ASSEMBLY XA229077
2 BOX, SILKSCREEN X229075
3 SWITCH, ROCKER X249406
4 BREAKER, CIRCUIT X250719
5 METER, HOUR X238736
6 SCREW, 6-32X.625 XX4926
7 WASHER, LOCK #6 XX226
8 NUT, HEX 6-32 XX712
9 PLATE, COVER X246434
10 SCREW, 6-32X5 XX491
11 #6-32 NUT XX62103
12 MOUNT, CONTROLLER X229353
13 WHIZ NUT XX62102
14 COVER, CONTROLLER X229076
15 SCREW, HEX.HD.10-24 XX6752
16 #10 WASHERS XX2536
17 STRAP, GROUND X246083
18 WASHER, SHAKEPROOF XX2212
19 NUT, HEX 1/4-20 XX762
20 WASHER, LOCK1/4 XX2211
21 NUT, HEX 1/4-20 XX818
22 1/4-20 HARDWARE REF.TO FIG35
23 WASHER, SHAKEPROOF XX2212
24 NUT, HEX 1/4-20 XX762
25 WASHER, LOCK1/4 XX2211
26 GROMMET, NYLON X60334
27 HARNESS, CONTROLLER X229129
27A FUSE 10A X223316
27B DIODE, 6AMP X233959
27C 22PIN CONNECTOR X239496
27D 6PIN CONNECTOR P3 X241616
27E 6PIN CONNECTOR X241617
27F 12PIN CONNECTOR X254852
27H FUSE HOLDER X269216
27J 15 PIN CONNECTOR X269366
28 #6-32 NUT XX62103
29 SCREW, 6-32X.625 XX4926
30 CONNECTOR, CABLE XX62661
31 BOARD, MAIN CIRCUIT XE239563
32 SCREW, 6-32X1/4 XX4925
33 SPACER, CIRCUIT B X287948
34 #6 WASHERS XX259
35 RELAY X259391
36 #10-32 NUT XX62101
37 VOLTAGE REGULATOR XA258296
38 SCREW, 8-32X.75 XX518
39 WASHER, NYLON X239665
40 SPACER X229357
41A #8 WASHERS XX2548
41B WASHER, LOCK #8 XX227
42 HARNESS,ENGINE WIRIN XX5112
43 HARNESS,ENGINE WIRIN XX5112
