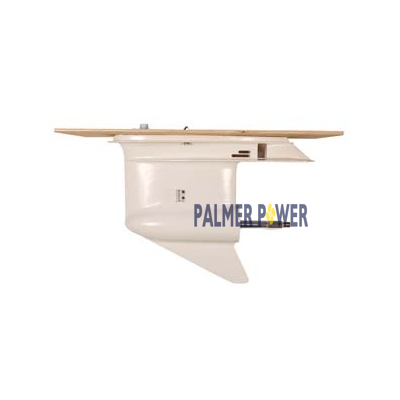

EVINRUDE-JOHNSON 5009316 Gearcase Assy, Complete

Write a Review
$5,418.99
SKU:
5009316
Schematic Object Key:
1

EVINRUDE-JOHNSON 5009316 Gearcase Assy, Complete

$5,418.99

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5009316 Gearcase Assy, Complete

Schematic Object Key : 1

Replacement: This part (5009316) replaces 5005630.

Product Description: Gearcase Assy, Complete

Category: JOHNSON / 2006 / 150 / J150PLSDD / GEARCASE - PL - GL MODELS

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 5009316 Gearcase assy, complete This part replaces 5005630.
1 5005551 Gearcase assy, complete
2 0387817 Bearing, pinion
3 0324852 Retaining screw seal
4 0332584 Washer, seal ring
5 0337061 Screw, water intake screens
6 0337778 Screen
7 0318544 Screw, fill drain
8 0311598 Seal contents of gearcase seal kit
9 0915954 Detent, shifter
10 0328825 Pin, shift lever
11 0160084 Ball
12 0911962 Spring
13 0389455 Bearing hsg assy, fwd gear
14 0389039 Bearing, forward gear
15 0331880 Pin, housing to gearcase
16 0334163 Cradle, shifter
17 0322938 Lever, shift
18 0322941 Arbre, commande de sens de marche
19 0327669 Thrust washer, forward gear
20 0389042 Thrust bearing assembly, foward gear
21 5004218 Gear pinion assy. gearset 0.54 ratio 14 26
22 0336561 Gear, reverse
23 0350038 Washer, pinion nut
24 0337774 Shifter, clutch dog
25 0313448 Pin, clutch dog
26 0324369 Spring, clutch dog pin
27 5004765 Propeller shaft
28 0382408 Thrust bearing
29 0314731 Rondelle de butée, engrenage de marche arrière
30 5004257 Bearing housing seal assy.
31 0305123 O ring contents of gearcase seal kit
32 0382407 Bearing assy, forward gear
33 0431708 Anode, bearing housing
34 0908158 Screw, anode
35 0436752 Bearing, propshaft
36 0334950 Seal contents of gearcase seal kit
37 0333957 Languette, de retenue
38 0328743 Rondelle
39 0350271 Screw
40 0349001 Wedge
41 0345998 Spring washer
42 0916070 Screw, wedge
43 0314730 Nut, pinion to driveshaft
44 0345905 Driveshaft, lower
45 0387656 Butée, arbre d'entraînement
46 0327656 Rondelle de butée, arbre d'entraînement
47 0323362 Cale, 0,003" 0,07 mm
47 0323361 Cale, 0,004" 0,10 mm
47 0314745 Cale, 0,005" 0,12 mm
48 0354731 O ring contents of gearcase seal kit This part replaces 0314728.
49 0439476 Bearing housing seal
50 0329922 Joint, supérieur contents of gearcase seal kit
51 0329923 Joint, inférieur contents of gearcase seal kit
52 0317624 Screw, driveshaft hsg
53 0352165 Gasket, shift rod cover contents of gearcase seal kit
54 5006241 Couvercle joint, tige de commande de sens de marche
55 0318372 "o" ring, shift rod contents of gearcase seal kit
56 0328702 Washer
57 0302325 Screw, impeller housing
58 0321008 Grommet, exh hsg to shift rod
59 5000615 Arbre d'entraînement, supérieur
60 0311538 Roll pin, driveshaft
61 0338504 Retainer, driveshaft
62 0342994 Shift rod
63 0338742 Compensateur de dérive
64 0313715 Screw, cap, hex hd, 7 16 14 x 1
65 0331999 Screw, gearcase housing
66 0330266 Washer, trail lock lever
67 0331998 Screw, gearcase to housing
68 0330265 Washer
69 0330263 Screw, upper mount retention
70 0436745 Anode
71 0328096 Screw
72 5001595 Water pump repair kit
73 0338484 Gasket, imp. hsg. plate contents of gearcase seal kit
74 0338485 Plate, impeller
75 0331353 Seal, impeller housing plate.
76 5001593 Impeller assembly
77 0302035 "o" ring, spacer to imp. hsg.
78 0331107 Clavette, turbine
79 0338486 Coupelle, turbine inox
80 0331188 O ring
81 0360347 Housing, impeller This part replaces 0435959.
82 0314008 Bague, tube à eau vers capot
83 0338893 Capot, carter de turbine
84 0302325 Screw, impeller housing
85 0306643 Screw
86 0320943 Bague, pompe vers carter d'échap.
87 0435526 Chrome cup plate kit
88 5006373 Gearcase seal kit
