EVINRUDE-JOHNSON 5009338 Gearcase Assembly, Complete

Write a Review
$5,906.99
SKU:
5009338
Schematic Object Key:
1

EVINRUDE-JOHNSON 5009338 Gearcase Assembly, Complete

$5,906.99

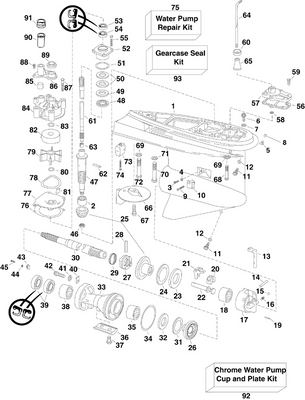

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5009338 Gearcase Assembly, Complete

Schematic Object Key : 1

Replacement: This part (5009338) replaces 5007334.

Product Description: Gearcase Assembly, Complete

Category: EVINRUDE / 2010 / 90 / E90WDEXISR / GEARCASE - PX MODELS

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 5009336 Gearcase assembly, complete This part replaces 5007023.
1 5009338 Gearcase assembly, complete This part replaces 5007334.
1 5007022 Gearcase bearing assembly
2 0387817 Bearing, pinion
3 0324852 Retaining screw seal
4 0332584 Washer, seal ring contents of gearcase seal kit
5 0336535 Fitting, pitot tube
6 0341220 Screw, pitot seal
7 0437330 Rondelle joint, tube de pitot contents of gearcase seal kit
8 0305749 Cap, nipple
9 0337061 Screw, water intake screens
10 0337778 Screen
11 0318544 Screw, fill drain
12 0311598 Seal contents of gearcase seal kit
13 0915954 Detent, shifter
14 0328825 Pin, shift lever
15 0160084 Ball
16 0911962 Spring
17 0389455 Bearing hsg assy, fwd gear
18 0389039 Bearing, forward gear
19 0331880 Pin, housing to gearcase
20 0334163 Cradle, shifter
21 0322938 Lever, shift
22 0322941 Arbre, commande de sens de marche
23 0327669 Thrust washer, forward gear
24 0389042 Thrust bearing assembly, foward gear
25 0435123 Gear pinion assy. gearset 0.54 ratio 14 26
26 0336574 Gear, reverse
27 0337774 Shifter, clutch dog
28 0313448 Pin, clutch dog
29 0324369 Spring, clutch dog pin
30 5004765 Propeller shaft
31 0382408 Thrust bearing
32 0314731 Rondelle de butée, engrenage de marche arrière
33 5004257 Bearing housing seal assy.
34 0305123 O ring contents of gearcase seal kit
35 0382407 Bearing assy, forward gear
36 0431708 Anode, bearing housing
37 0908158 Screw, anode
38 0436752 Bearing, propshaft
39 0334950 Seal contents of gearcase seal kit
40 0333957 Languette, de retenue
41 0328743 Rondelle
42 0350271 Screw
43 0349001 Wedge
44 0345998 Spring washer
45 0916070 Screw, wedge
46 0314730 Nut, pinion to driveshaft
47 0345905 Driveshaft, lower
48 0387656 Butée, arbre d'entraînement
49 0327656 Rondelle de butée, arbre d'entraînement
50 0323362 Cale, 0,003" 0,07 mm
50 0323361 Cale, 0,004" 0,10 mm
50 0314745 Cale, 0,005" 0,12 mm
51 0354731 O ring contents of gearcase seal kit
52 0439476 Bearing housing seal
53 0329922 Joint, supérieur contents of gearcase seal kit
54 0329923 Joint, inférieur contents of gearcase seal kit
55 0317624 Screw, driveshaft hsg
56 0352165 Gasket, shift rod cover contents of gearcase seal kit
57 5006241 Couvercle joint, tige de commande de sens de marche
58 0318372 "o" ring, shift rod contents of gearcase seal kit
59 0328725 Screw, cover to gearcase
60 0321008 Grommet, exh hsg to shift rod
61 5000624 Driveshaft assembly, upper
62 0311538 Roll pin, driveshaft
63 0338504 Retainer, driveshaft
64 0352886 Shift rod
65 0321122 Spacer, shift rod
66 0338742 Compensateur de dérive
67 0313715 Screw, cap, hex hd, 7 16 14 x 1
68 0331999 Screw, gearcase housing
69 0330266 Washer, trail lock lever
70 0331998 Screw, gearcase to housing
71 0330265 Washer
72 0330263 Screw, upper mount retention
73 0436745 Anode
74 0328096 Screw
75 5001595 Water pump repair kit
76 0338484 Gasket, imp. hsg. plate contents of gearcase seal kit
77 0338485 Plate, impeller
78 0331353 Seal, impeller housing plate.
79 5001593 Impeller assembly
80 0302035 "o" ring, spacer to imp. hsg.
81 0331107 Clavette, turbine
82 0338486 Coupelle, turbine inox
83 0331188 O ring
84 0360347 Housing, impeller This part replaces 5007968.
85 0314008 Bague, tube à eau vers capot
86 0338893 Capot, carter de turbine
87 0302325 Screw, impeller housing
88 0306643 Screw
89 0320943 Bague, pompe vers carter d'échap.
90 0354580 Sleeve, extension
91 0338601 Grommet, sleeve to exh hsg
92 0435526 Chrome cup plate kit
- 0338551 Coupelle, turbine chrome
- 0338552 Plate, impeller
93 5006373 Gearcase seal kit
