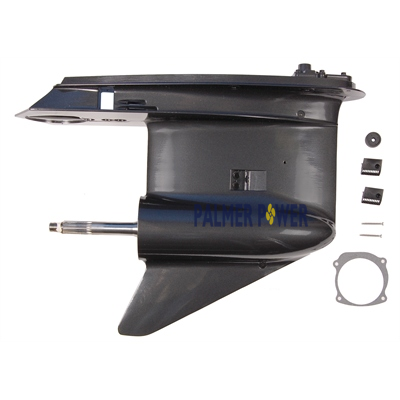

EVINRUDE-JOHNSON 5009340 Gearcase Assembly, Complete

Write a Review
$7,009.49
SKU:
5009340
Schematic Object Key:
1

EVINRUDE-JOHNSON 5009340 Gearcase Assembly, Complete

$7,009.49

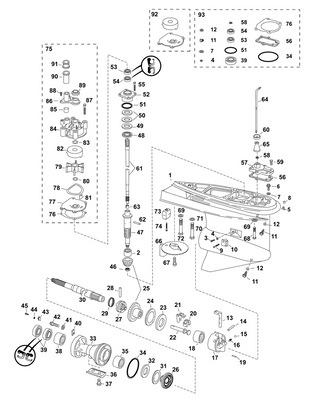

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5009340 Gearcase Assembly, Complete

Schematic Object Key : 1

Replacement: This part (5009340) replaces 5005553.

Product Description: Gearcase Assembly, Complete

Category: EVINRUDE / 2006 / 150 / E150FHLSDR / GEARCASE - FHL MODEL

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 5009340 Gearcase assembly, complete This part replaces 5005553.
2 0387817 Bearing, pinion
3 0350039 Screen, water inlet
4 0324852 Retaining screw seal
5 0332584 Washer, seal ring contents of gearcase seal kit
6 0336535 Fitting, pitot tube
7 0305749 Cap, nipple
8 0318544 Screw, fill drain contents of gearcase seal kit
9 0311598 Seal
10 0915954 Detent, shifter
11 0328825 Pin, shift lever
12 0160084 Ball
13 0911962 Spring
14 0389455 Bearing hsg assy, fwd gear
15 0389039 Bearing, forward gear
16 0331880 Pin, housing to gearcase
17 0334163 Cradle, shifter
18 0322938 Lever, shift
19 0322941 Arbre, commande de sens de marche
20 0327669 Thrust washer, forward gear
21 0389042 Thrust bearing assembly, foward gear
22 5004218 Gear pinion assy.
23 0336561 Gear, reverse
24 0350038 Washer, pinion nut
25 0337774 Shifter, clutch dog
26 0313448 Pin, clutch dog
27 0324369 Spring, clutch dog pin
28 5004765 Propeller shaft
29 0382408 Thrust bearing
30 0314731 Rondelle de butée, engrenage de marche arrière
31 5004257 Bearing housing seal assy.
32 0305123 O ring contents of gearcase seal kit
33 0382407 Bearing assy, forward gear
34 0431708 Anode, bearing housing
35 0908158 Screw, anode
36 0436752 Bearing, propshaft
37 0334950 Seal contents of gearcase seal kit
38 0333957 Languette, de retenue
39 0328743 Rondelle
40 0350271 Screw
41 0349001 Wedge
42 0345998 Spring washer
43 0916070 Screw, wedge
44 0314730 Nut, pinion to driveshaft
45 0345905 Driveshaft, lower
46 0387656 Butée, arbre d'entraînement
47 0327656 Rondelle de butée, arbre d'entraînement
48 0323362 Cale, 0,003" 0,07 mm
48 0323361 Cale, 0,004" 0,10 mm
48 0314745 Cale, 0,005" 0,12 mm
49 0354731 O ring contents of gearcase seal kit This part replaces 0314728.
50 0439476 Bearing housing seal
51 0329922 Joint, supérieur contents of gearcase seal kit
52 0329923 Joint, inférieur contents of gearcase seal kit
53 0317624 Screw, driveshaft hsg
54 0352165 Gasket, shift rod cover contents of gearcase seal kit
55 5006241 Couvercle joint, tige de commande de sens de marche
56 0318372 "o" ring, shift rod contents of gearcase seal kit
57 0328702 Washer
58 0302325 Screw, impeller housing
59 0321008 Grommet, exh hsg to shift rod
60 5000615 Arbre d'entraînement, supérieur
61 0311538 Roll pin, driveshaft
62 0338504 Retainer, driveshaft
63 0342994 Shift rod
64 0336284 Cover, trim tab opening
65 0313715 Screw, cap, hex hd, 7 16 14 x 1
66 0331999 Screw, gearcase housing
67 0330266 Washer, trail lock lever
68 0331998 Screw, gearcase to housing
69 0330265 Washer
70 0330263 Screw, upper mount retention
71 0436745 Anode
72 0307161 Lock washer, anode
73 0341219 Screw, anode
74 5001595 Water pump repair kit
75 0338484 Gasket, imp. hsg. plate contents of gearcase seal kit
76 0338485 Plate, impeller
77 0331353 Seal, impeller housing plate.
78 5001593 Impeller assembly
79 0302035 "o" ring, spacer to imp. hsg.
80 0331107 Clavette, turbine
81 0338486 Coupelle, turbine inox
82 0331188 O ring
83 0360347 Housing, impeller This part replaces 0435959.
84 0314008 Bague, tube à eau vers capot
85 0338893 Capot, carter de turbine
86 0302325 Screw, impeller housing
87 0306643 Screw
88 0320943 Bague, pompe vers carter d'échap.
89 0435526 Chrome cup plate kit
90 5006373 Gearcase seal kit
