EVINRUDE-JOHNSON 308885 Throttle Valve

Write a Review
$1.25
SKU:
308885
Schematic Object Key:
13

EVINRUDE-JOHNSON 308885 Throttle Valve

$1.25

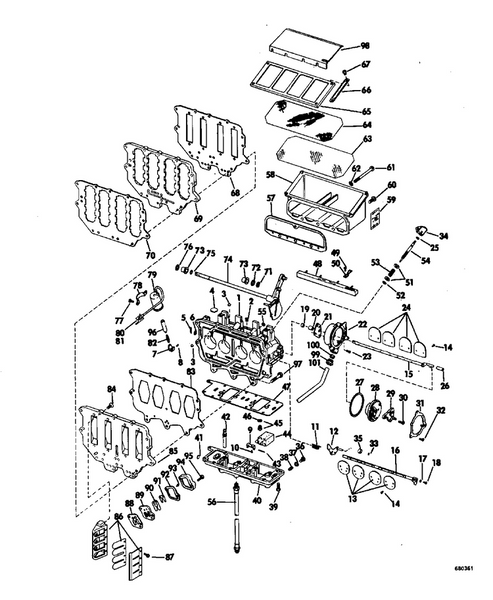

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 308885 Throttle Valve

Schematic Object Key : 13

Product Description: Throttle Valve

Category: STERN DRIVE / 1968 / 90 / DUE-15F 1968 / CARBURETOR GROUP

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
0379104 0379104 Carburetor automatic choke assy
1 0379107 Carburetor body plug assembly
2 0333695 Screen, cover This part replaces 0309949.
3 0304201 Lead shot
4 0306352 .plug core
5 0305650 Cotter pin This part replaces 0306463.
6 0125545 Washer, hook, front This part replaces 0552783.
7 0308882 Choke arm
8 0308893 Screw
9 0305223 Hinge
10 0309650 Drive screw, hinge
11 0310116 .spring, throttle shaft
12 0378757 Cam follower assy
13 0308885 Throttle valve
14 0313075 . screw, choke valve
15 0378748 Choke shaft arm assy
16 0382975 .shaft arm throttle
17 0300803 . washer, screw
18 0302812 Screw, ground terminal
19 0308781 .bushing, choke shaft, short
20 0308780 .bushing, choke shaft, long
21 0308750 Gasket
22 0308772 Housing automatic choke
23 0302104 .screw, choke housing
24 0308840 .valve, choke
25 0203470 Retaining ring, pawl This part replaces 0202139.
26 0308773 Sleeve
27 0380652 Retainer
28 0378747 Austomatic choke assy
29 0310537 Knob
30 0307466 Scres, bowl to body
31 0380652 Retainer
32 0303212 Screw, cover
33 0307529 "o" ring, cam follower
34 0308719 Knob
35 0310354 Roller
36 0307832 Plug, screw
37 0303630 Washer
38 0328543 Orifice, high speed, 58d, 90, This part replaces 0308977.
39 0307466 Scres, bowl to body
40 0379103 Float bowl plug assy
41 0303405 . .plug, core
42 0308976 Nozzle
43 0302661 Hinge pin, float
44 0378654 Float float arm
45 0396521 Float valve seat assy This part replaces 0378895.
46 0301996 Gasket
47 0308508 Gasket
48 0308718 Link
49 0306373 Cotter pin, reverse lock
50 0308764 Friction spring
51 0308894 Washer
52 0334913 O ring This part replaces 0303598.
63 0303518 Spring, needle valve
54 0310573 Needle valve
55 0306407 Locckwasher,cover latch
56 0379602 Hose assembly
57 0308761 Gasket
58 0308758 Housing air intake
59 0309898 Transfer
60 0319292 Screw, clamp This part replaces 0308762.
61 0308763 Screw long
62 0306358 Flat washer, helm mounting
63 0308842 Support screen
64 0308841 Screen small mesh
65 0308846 Cover
66 0312765 Plate
67 0308691 Screw
68 0308724 Cap,trunnion anchor
69 0308721 Spacer
70 0308723 Gasket
71 0305234 Bow washer
72 0303886 Lockwasher
73 0308985 Bushing
74 0378752 Throttle control
75 0308986 Retaining ring
76 0308987 Washer
77 0329594 Screw, cam follower This part replaces 0303737.
78 0308944 Yoke
79 0383598 Solenoid assembly This part replaces 0379558.
80 0310680 . terminal
81 0310572 ,housing, connector
82 0310774 Spring
83 0310603 Gasket
84 0308720 Screw
85 0310602 Base
86 0381192 Leaf plate assembly
87 0327074 Screw This part replaces 0307129.
88 0309427 Gakset, drain valve
89 0379093 Drain plate screen assembly
90 0302031 Leaf plate
91 0304655 Plate
92 0302032 , drain valve cover
93 0303761 Screw
94 0302033 Cover
95 0308709 Screw
96 0379678 Plunger solenoid
97 0308728 Screw
98 0310823 Shield carburetor
99 0308760 Compression nut
100 0306327 Ball sleeve
101 0308884 Tubing
