EVINRUDE-JOHNSON 313063 . Valve, Throttle

Write a Review
$1.25
SKU:
313063
Schematic Object Key:
46

EVINRUDE-JOHNSON 313063 . Valve, Throttle

$1.25

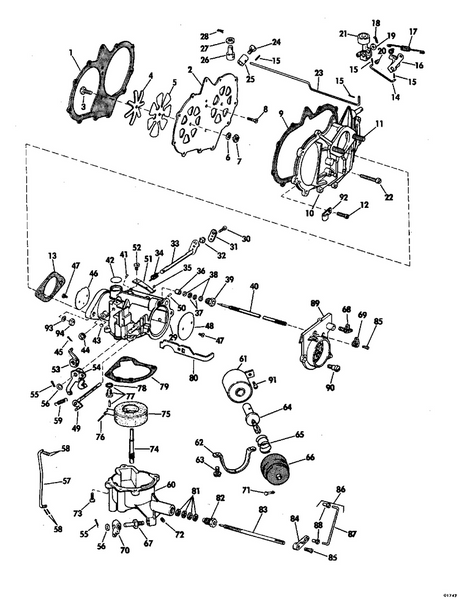

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 313063 . Valve, Throttle

Schematic Object Key : 46

Product Description: . Valve, Throttle

Category: JOHNSON / 1970 / 33 / 33RL70M 1970 / CARBURETOR GROUP ELECTRIC START

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0311365 Gasekt, leaf plate to c'case
0380243 0380243 Lead plate assembly
2 0311363 .plate, lead
3 0301858 Screw, leaf to plate
4 0304709 Stop , leaf
5 0308938 Leaf
6 0306546 Lock washer, leaf screw
7 0306556 Nut, leaf screw
8 0302104 .screw, choke housing
9 0311364 Gasket, lead plate to manifold
10 0380251 Intake manifold stud assy
11 0302822 Stud
12 0304888 Screw
13 0302598 Gasket, carb. mtg
14 0312262 Link, throttle lever to cam follower
15 0307565 Pin
16 0376478 Throttle lever pin
17 0307408 Spring
18 0305650 Cotter pin This part replaces 0306463.
19 0301827 Washer
20 0304216 Bushing
21 0376477 Cam follower
22 0307878 Screw, long
23 0307824 Rod, thottle control
24 0304221 Scew,collar to cable
25 0304222 Collar
26 0304226 Pin, pivot
27 0551953 Washer
28 0303049 Cotter pin
0382657 0382657 Carburetor assy., complete
29 0382653 Body assy
30 0306497 .screw, arm
31 0305457 .clamp
32 0305456 .bushing, cam
33 0377222 .throttle shaft arm
34 0302696 .spring, throttle shaft
35 0304105 .plug, body
36 0303939 ,,bushing, needle valve, slow speed
37 0307583 Packing, valve
38 0306027 Washer, packing
39 0305507 .nut, packing
40 0305506 .valve, needle, slow speed
41 0301732 . plug
42 0306392 .plug, core
43 0303962 .plug, core
44 0307596 . washer, throttle shaft
45 0305650 Cotter pin This part replaces 0306463.
46 0313063 . valve, throttle
47 0312852 . screw, throt. choke valve
48 0302674 .valve, choke
49 0376256 .choke shaft, arm and pin
50 0306099 .plug, fuel passage, long
51 0302722 Spring, choke control
52 0306479 Screw
53 0303749 Lever
54 0376255 Bellcrank pin
55 0305650 Cotter pin This part replaces 0306463.
56 0307596 . washer, throttle shaft
57 0303734 Link
58 0307565 Pin
59 0304111 Spring
60 0312930 Float chamber
61 0385554 Solenoid This part replaces 0376806.
62 0328907 Clamp, primer solenoid mtg. This part replaces 0303740.
63 0329594 Screw, cam follower This part replaces 0303737.
64 0377890 Plunger solenoid
65 0303745 Spring, plunger
66 0303792 Cover, solenoid
67 0303739 Pivot pin
68 0381853 Adjusting knob shaft
69 0305442 Adjusting knob
70 0303747 Lever
71 0382778 Pin, solenoid This part replaces 0309569.
72 0303041 Screw
73 0306357 . . . screw, short, 5 8" long
74 0312927 Nozzle, high speed
75 0375792 Float float arm
76 0302661 Hinge pin, float
77 0396521 Float valve seat assy This part replaces 0378895.
78 0301996 Gasket
79 0303750 Gakset, float bowl
80 0305515 Choke rod
81 0307583 Packing, valve
82 0300179 Pkg. nut, adj. needle valves
83 0305505 Needle valve, high speed
84 0307442 Arm, needle valve
85 0551517 Screw
86 0377916 Link bushing assy
87 0307207 .link
88 0306180 .bushing, retainer
89 0379221 Control panel assy
90 0309887 .screw, control panel
91 0510193 . screw, clamp cover
92 0310442 Clamp, tps lead
93 0306799 L'washer,bracket to hsg.
94 0306320 Nut
