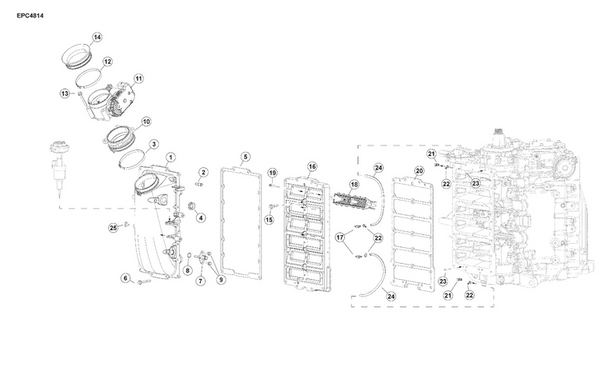

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 11
Product Description: Throttle Valve Assembly
Category: EVINRUDE / AF Models / 150 - (G2, 66° V6, 2.7 L) / C150HGXPAFD - (G2 66° V6, 2.7 L) / 05-1_INTAKE MANIFOLD ASSEMBLY
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 5010122 | Plenum assembly | |
2 | 0357437 | Fitting vapor separator vent | |
3 | 0358657 | Clamp, 84.5 mm | |
4 | 0358935 | Grommet | |
5 | 0352607 | Gasket, plenum to reed plate included in powerhead gasket seal kit | |
6 | 0353579 | Screw, impeller housing m6 x 45 | |
7 | 3010673 | Sensor, air temperature see sensors | |
8 | 0304174 | "o" ring, tube adapter | |
9 | 0353753 | Screw, bracket to cyl c c m5 x 12 | |
10 | 0358655 | Isolator, throttle valve mounting | |
11 | 5010123 | Throttle valve assembly | |
12 | 0358657 | Clamp, 84.5 mm | |
13 | 0356304 | Screw, throttle valve | |
14 | 0358656 | Bellmouth | |
15 | 0353553 | Screw m6 x 30 m6 x 30 | |
16 | 5010124 | Reed plate assembly need new service kit p n | |
17 | 5009373 | Check valve assembly | |
18 | 5009159 | Reed valve screws need new service kit p n | |
19 | 0352089 | Screw, reed valve | |
20 | 0351366 | Gasket, reed plate to c c included in powerhead gasket seal kit | |
21 | 0346137 | Fitting, cylinder oil inlet oil recirculation | |
22 | 0317893 | Tie strap | |
23 | 0353931 | Pin, alignment | |
24 | 0778708 | Hose 0.093 in. 2.36 mm diameter, bulk roll 25 ft. 7.62 m | |
25 | 0358999 | Clip,connector mounting trim motor, trim sender, trim relay, harness dps connector on ihs trac models |
